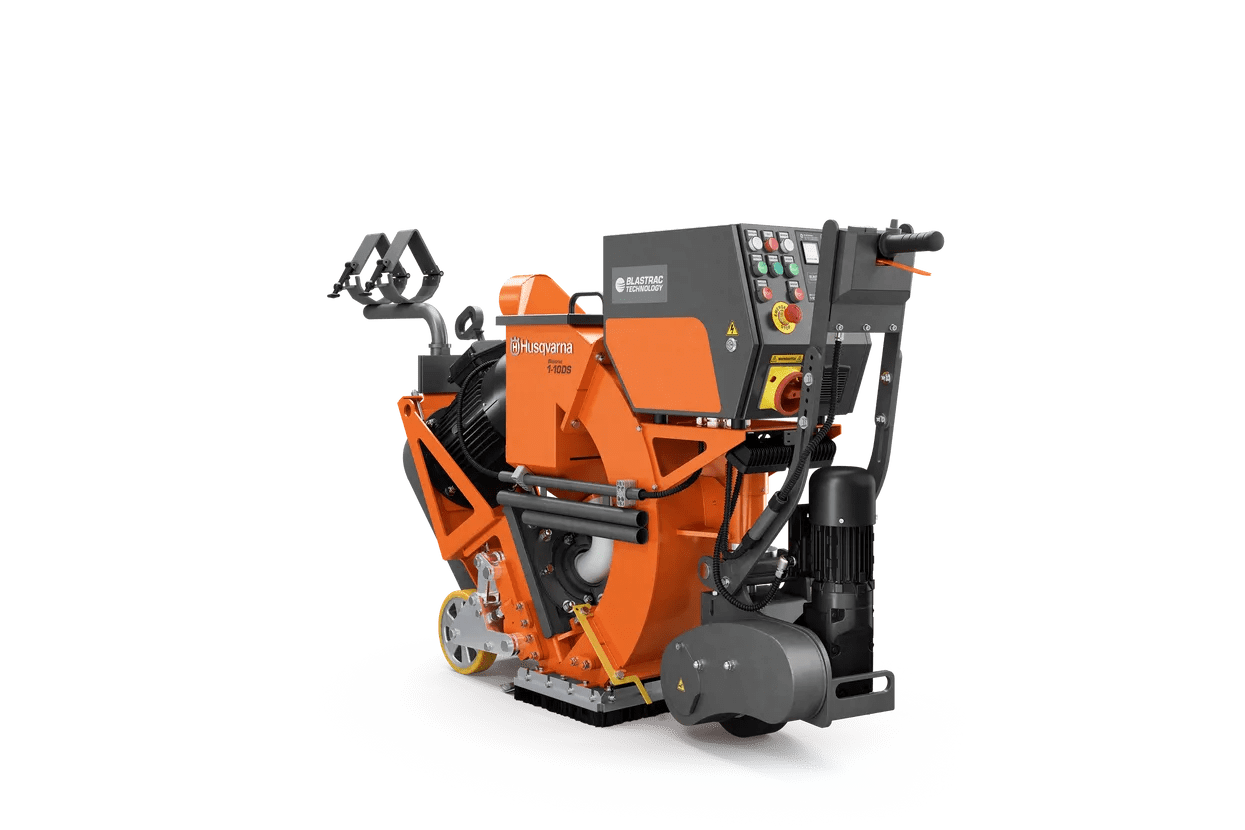

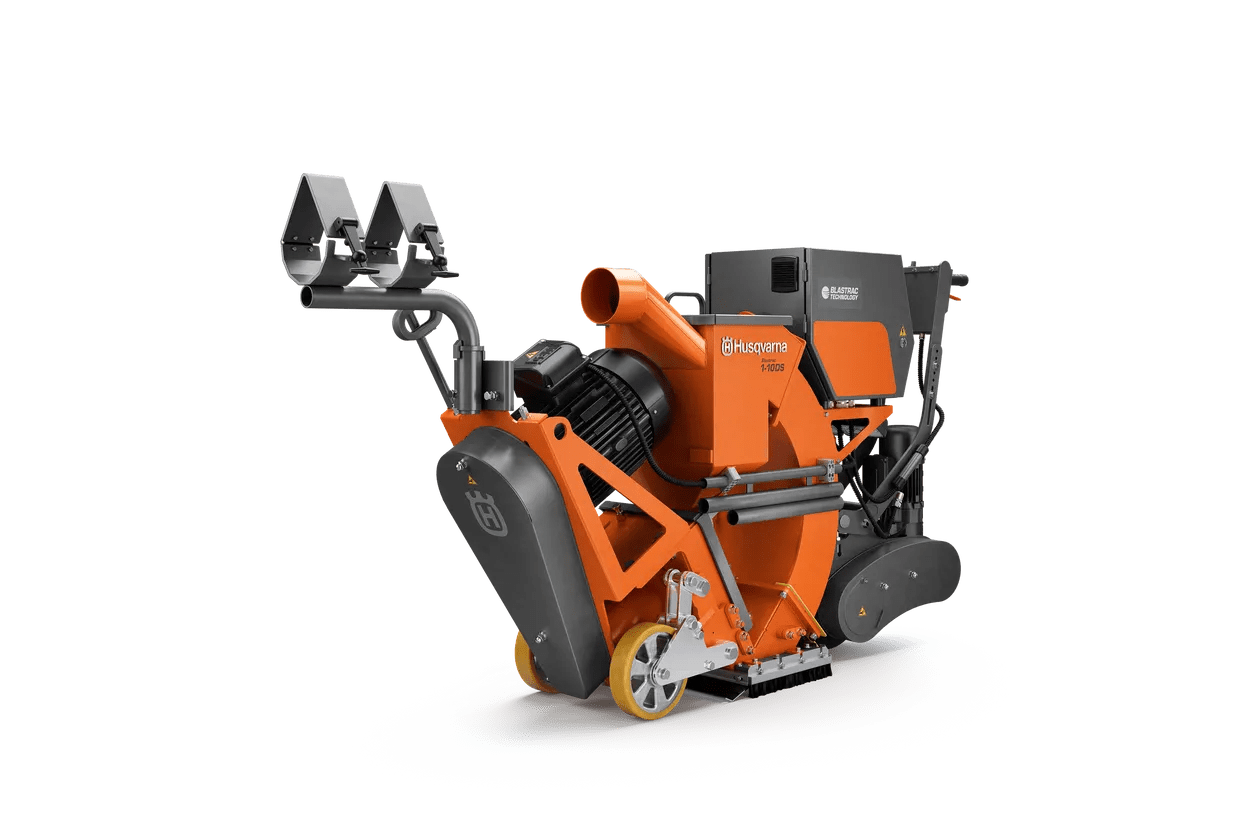

The Blastrac 1-10DS walk-behind shot blasting machine offers a high level of versatility making it optimal for medium to large sized surface preparation applications. It is ideal for cleaning and preparing surfaces such as concrete and asphalt before the application of a new coating. It can also be used to prepare steel surfaces. The Blastrac 1-10DS is equipped with a powerful 11 kW blasting motor and separate drive motor for optimal maneuverability. The drive motor for self-propelled operation helps maintain speed on ramps and inclines. The Blastrac 1-10DS is equipped with its own height adjusting system for easy transportation.
|
Motor
|
||
|
Output power
|
11.6 kW
|
|
|
Voltage
|
400 V
|
|
|
Frequency
|
50 Hz
|
|
|
Rated current
|
22.7 A
|
|
|
Phases
|
3 ph
|
|
|
Power source
|
Corded
|
|
|
Product data
|
||
|
Working width
|
25.4 cm
|
|
|
Dust hose connection
|
125 mm
|
|
|
Steel shot consumption
|
75 g/m²
|
|
|
Transmission
|
||
|
Type of operation
|
Pull
|
|
|
Dimensions
|
||
|
Product size length
|
1,900 mm
|
|
|
Product size width
|
420 mm
|
|
|
Product size height
|
1,050 mm
|
|
|
Weight (complete product w/o side packed articles)
|
395 kg
|
|
